Label Flat Bed Die Cutting Machine With Hole Puch Hot Stamping Lamination

Name: Label Flat Bed Die Cutting Machine With Hole Puch Hot Stamping Lamination
Brand: Sunrise
Price: 11000 USD

Buy cheap Label Flat Bed Die Cutting Machine With Hole Puch Hot Stamping Lamination product

Brand Name : Sunrise

Model Number : XR-350Z

Place of Origin : CHINA ZHEJIANG

MOQ : One Set/Sets

Price : 11000usd

Payment Terms : Western Union, T/T

Delivery Time : 15-20 work days

Packaging Details : Exported Wooden Case

Supply Ability : 40 sets per month

Certification : CE

model : XR-350Z

cutting area : 340*340

max web width : 350mm

speed : 300times/min

power : 6kw

warranty : 1 year

Contact Now

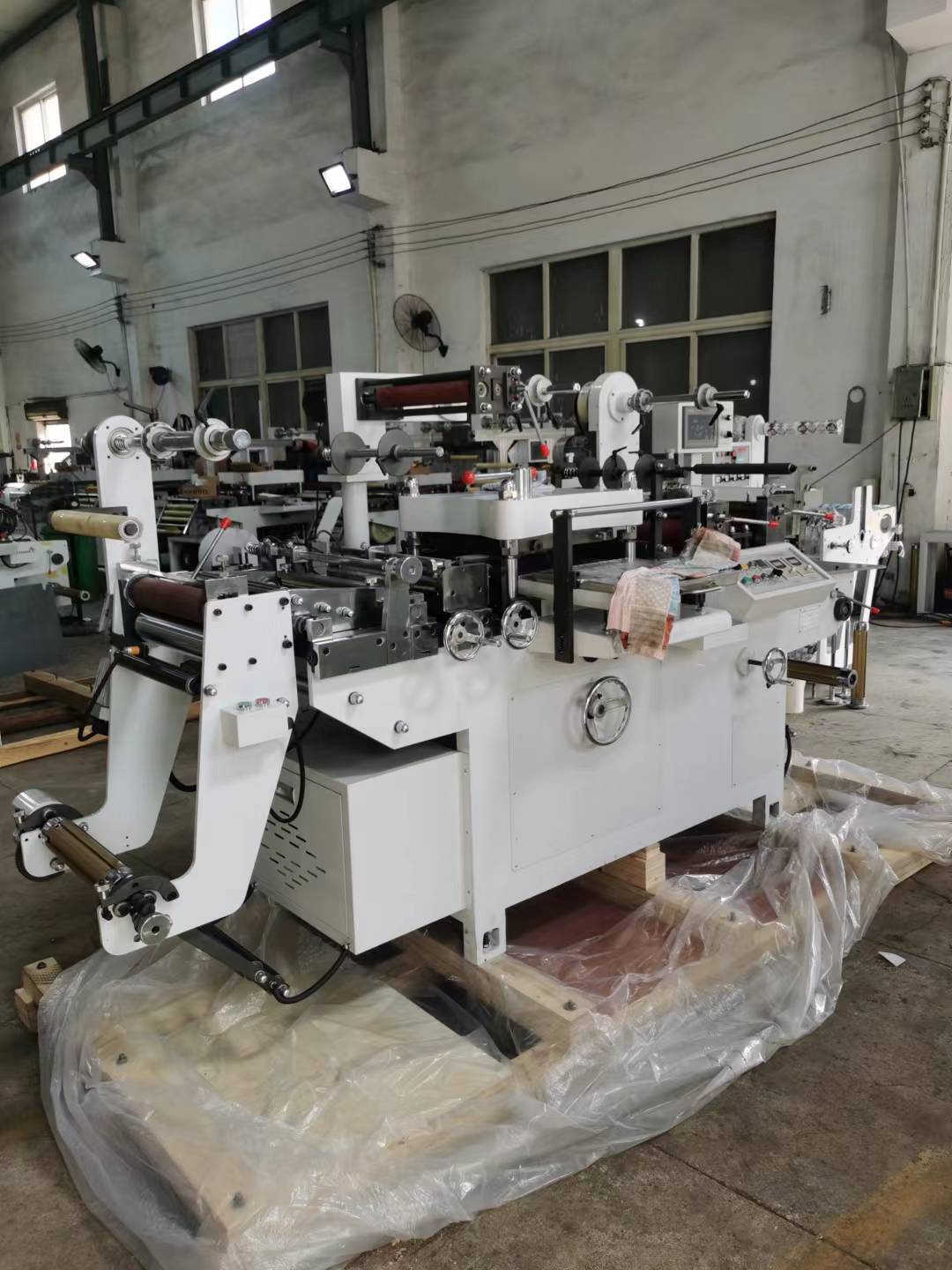

Flat bed label die cutting machine with hole puch,hot stamping,lamination

Extended functions: laminating-hot stamping-hole punching

Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding

The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.

This machine is widely used in electronic line, adhesive product line and so on.

Features:

This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material colors, unwinding-die cutting-waste discharging-sheet cutting-rewinding all are completed in one turn, all are control by PLC control system.

Technical parameters:

	Model	XR-350Z
	Max. Feeding width	350mm
	Cutting area	340*350mm
	Die Cutting speed	300 times/min
	Slitting speed	100m/min
	Position accuracy	±0.10mm
	Power of main motor	3 kw+1.5kw
	Size(LWH)	340013101750
	Unwinding/rewinding diameter	650/600mm
	Voltage	380v,3phase
	Total power	6kw
	weight	1900kg
